| Model Name | H2 34 | H2 38 | H2 45 |
| Description | H2 3400 MM (9.9T) | H2 3800 MM (12T) | H2 4500 MM (12T) |
| Vehicle Model | ZZ1048G3414C1R | ZZ1148G3815C1R | ZZ1148G4515C1R |
| Dimensions (mm) |
| Specification | H2 34 | H2 38 | H2 45 |
| Cab width | 1880 | 2080 | 2080 |
| Wheelbase | 3360 | 3800 | 4500 |
| Front overhang | 1206 | 1206 | 1190 |
| Rear overhang | 1375 | 1850 | 2155 |
| Centre line of front axle to back of cab (no sleeper) | 475 | 490 | 490 |
| Front wheel track | 1583 | 1804 | 1804 |
| Rear wheel track | 1604 | 1804 | 1804 |
| Width across rear tires | 2117 | 2322 | 2322 |
| Chassis length | 6160 | 6970 | 7800 |
| Chassis width | 2230 | 2360 | 2400 |
| Chassis height | 2480 | 2560 | 2560 |

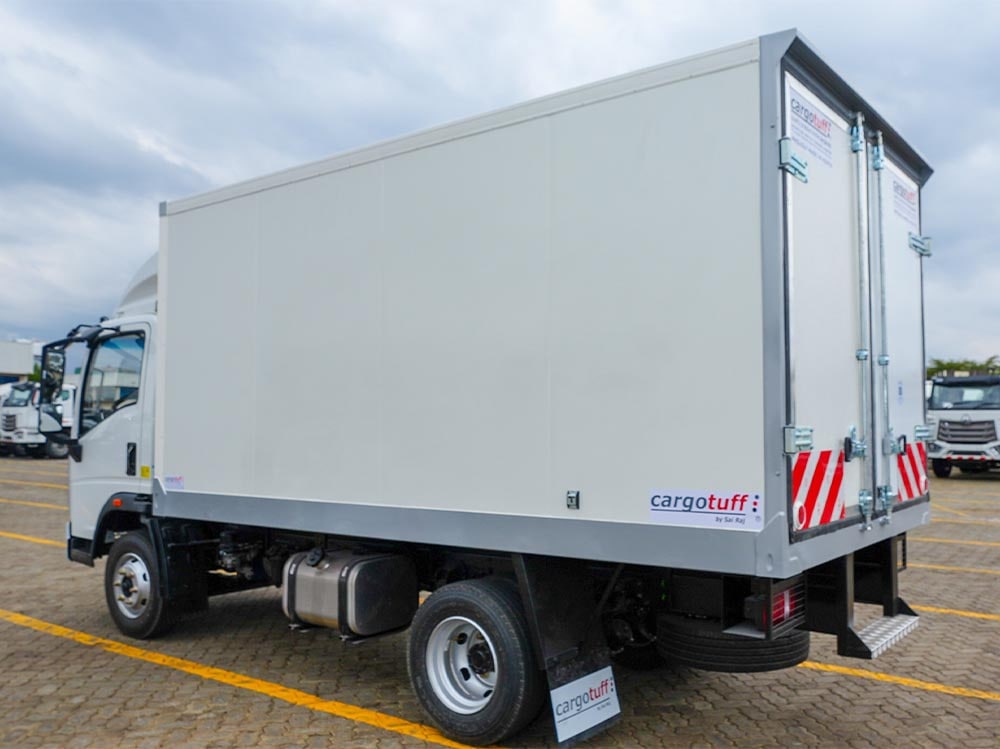

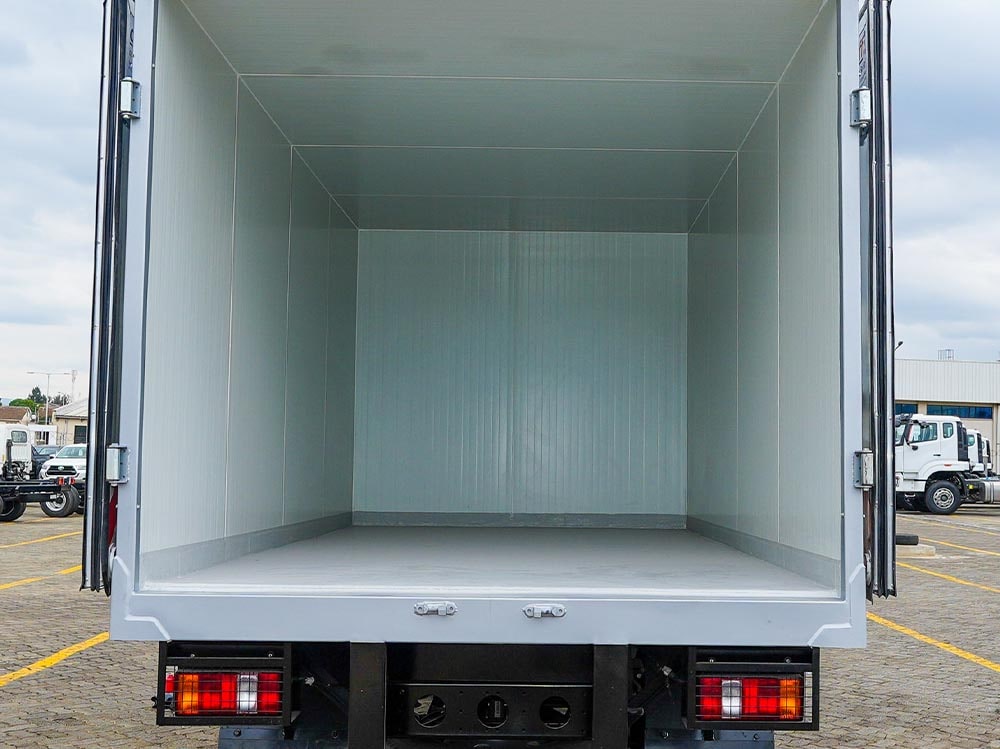

| Enclosed Box Body Size (L) | 4200 | 5200 | 6100 |
| Enclosed Box Body Size (W) | 2050 | 2300 | 2300 |
| Enclosed Box Body Size (H) | 2050 | 2300 | 2300 |
| Weights (kg) |
| Gross Vehicle Weight (GVW) | 9900 | 12000 | 12000 |
| Chassis kerb weight | 2790 | 3200 | 3600 |
| Front axle loading capacity | 3200 | 4000 | 4000 |
| Rear axle loading capacity | 6700 | 8000 | 8000 |
| Performance |
| Maximum speed (km/h) | 120 | 110 | 110 |
| Maximum gradeability (%) | 25–30 | 15–20 | 15–20 |
| Minimum turning diameter (m) | <13 | <14 | <17 |
| Ground clearance (mm) | 222 | 203 | 203 |
| Approach angle (°) | 22 | 21 | 21 |
| Departure angle (°) | 13 | 13 | 13 |
| Engine |
| Model | WP3NQ160AO, Euro 3 |
| Capacity (cc) | 4-cylinder in-line, 2970CC, diesel |
| Power | 160HP @ 3000rpm |
| Torque | 480Nm @ 1400–2300rpm |
| Clutch |
| Type | φ350 diaphragm spring clutch, single plate |
| Gearbox |
| Model | WLY6G55 |
| Operation | 6-speed manual control |
| Ratios | 1–6.198, 2–3.287, 3–2.025, 4–1.371, 5–1.000, 6–0.780 |
| Reverse | R1–5.681 |
| Max input torque | 550Nm |
| Steering System |
| Type | Hydraulically assisted |
| Axle |
| Front | 1061, 3.2T forging I-beam, Drum brake | 1061L, 4.0T forging I-beam, Drum brake |

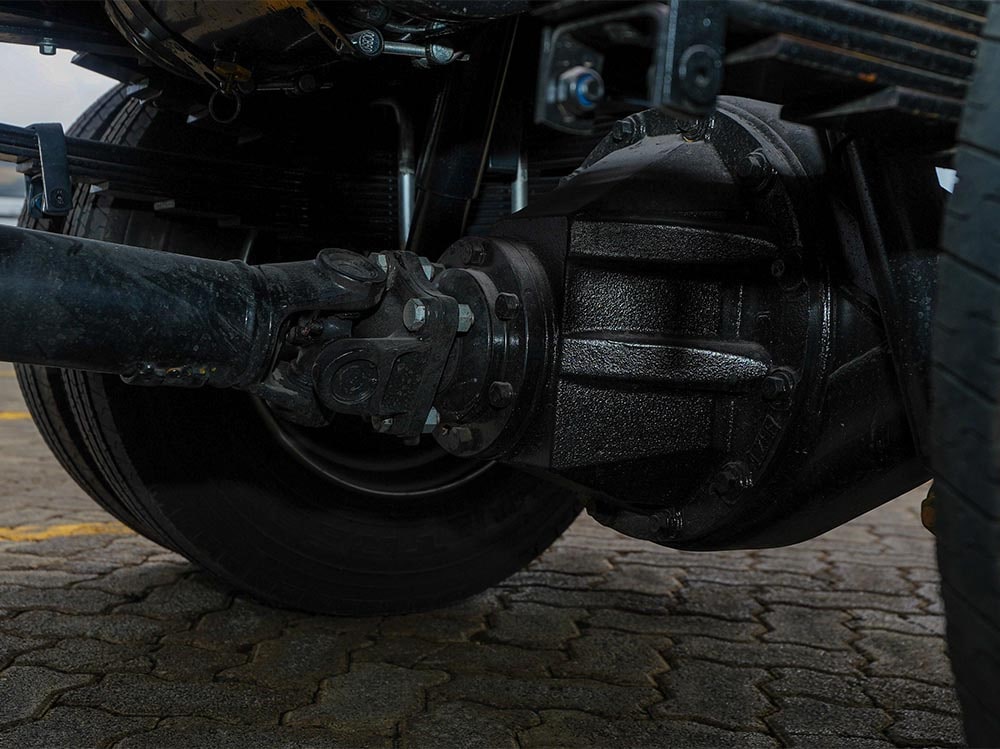

| Rear | 1061J, 6.7T, single reduction, ABS, Ratio: 4.875 | 1080, 8.0T, single reduction, ABS, Ratio: 4.875 |
| Suspension |
| Front | 11 semi-elliptical leaf springs, shocks + stabilizer |
| Rear | 9+7 semi-elliptical leaf springs |
| Braking System |
| Type | Air brake system |
| Service brake | Dual-circuit air brake |
| Parking brake | Spring energy brake |
| Auxiliary brake | Exhaust brake |
| Wheels & Tires |
| Tires | 235/75R17.5 | 8.25R16 |
| Wheels | 17.5×6.75 | 16.00×6.50 |

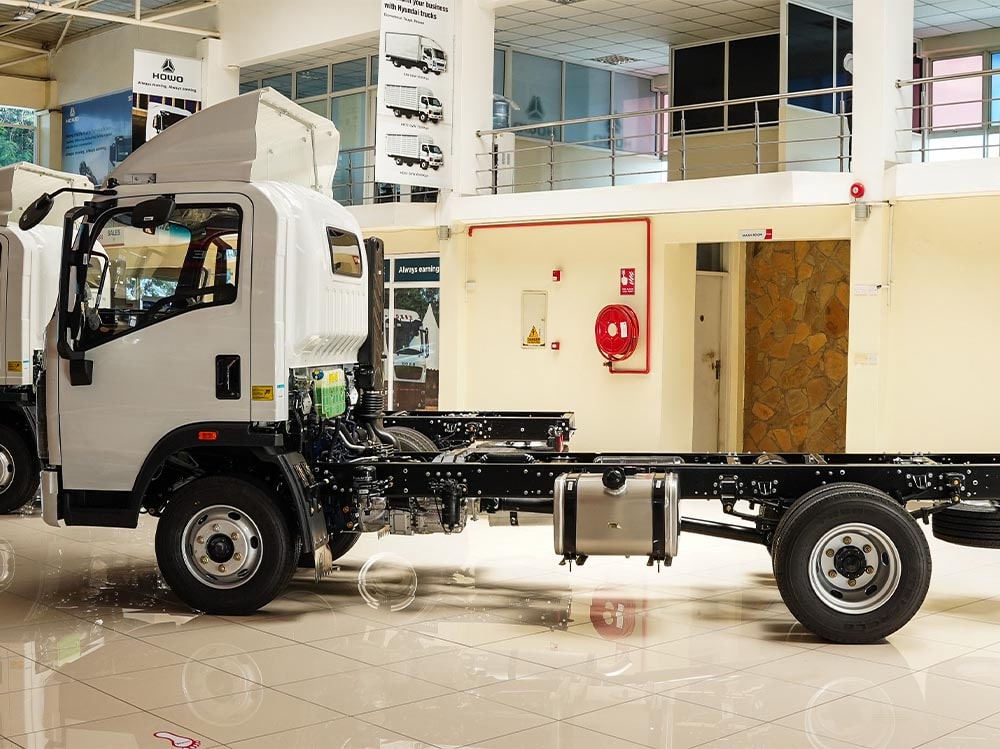

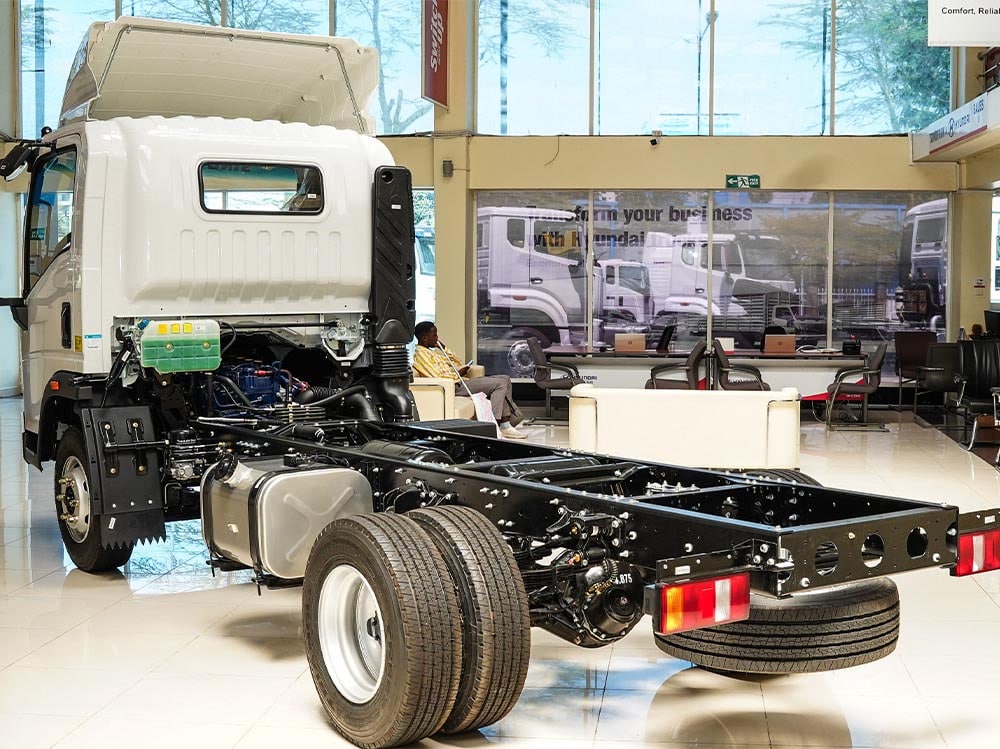

| Frame |
| Material | High tensile steel | High tensile steel |
| Section | 196 x 65 x 6mm | 215 x 65 x 6mm |
| Frame width | 800mm | 865mm |
| Fuel Tank |
| Capacity | 120 Liter |
| Type | Aluminium lockable |
| Electrical System |
| Type | SINOTRUK CAN Bus System with VCO instrument |
| Voltage | 24V |
| Batteries | 2 x 12V, 120Ah |
| Alternator | 28V / 80A |
| Starter | 4.5kW |
| Others |

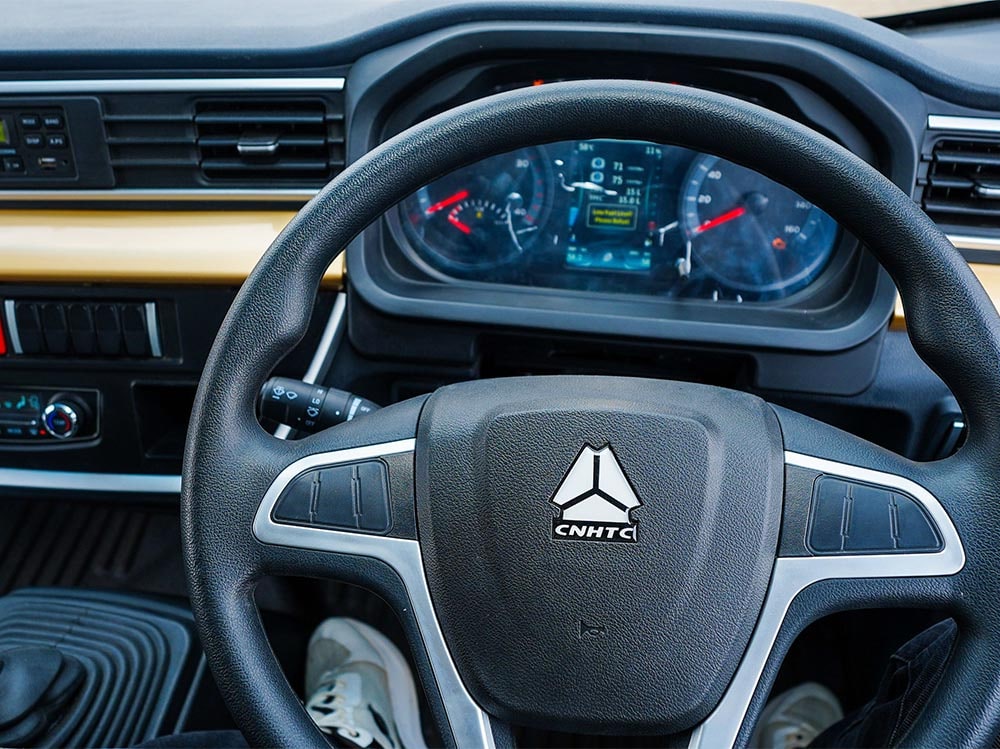

| Colorful Instrument | ✔ | ✔ | ✔ |

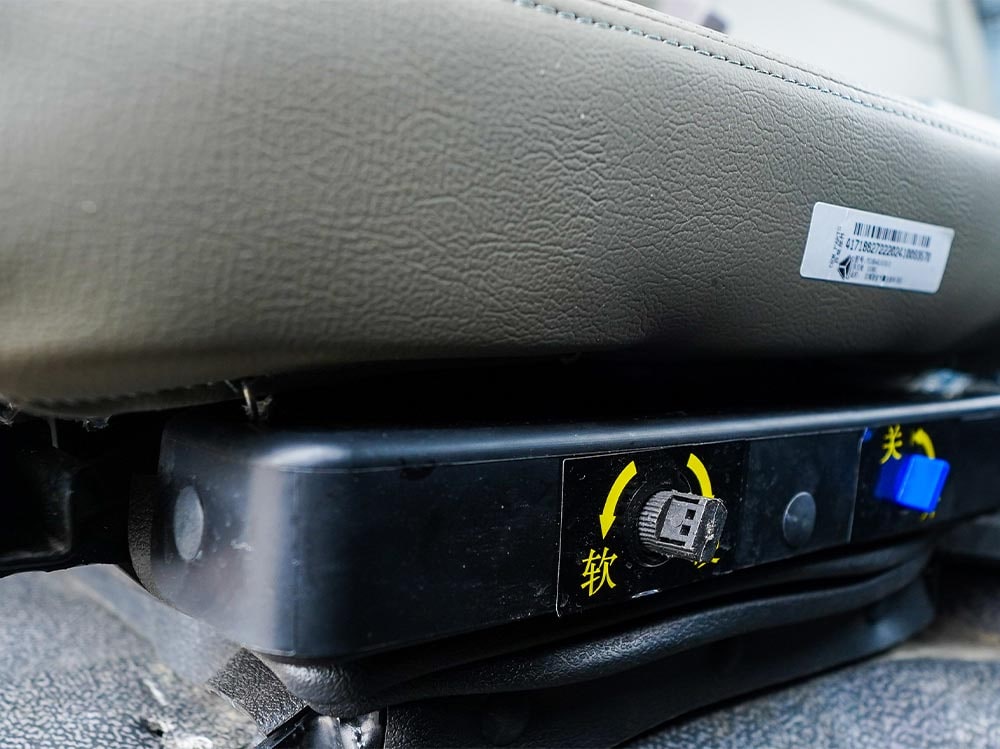

| Air Suspension Driver Seat | ✔ | ✔ | ✔ |
| Electric Doors & Windows | ✔ | ✔ | ✔ |
| Remote Key & Central Lock | ✔ | ✔ | ✔ |
| Leather Seat | ✔ | ✔ | ✔ |
| Radio + MP3 | ✔ | ✔ | ✔ |
